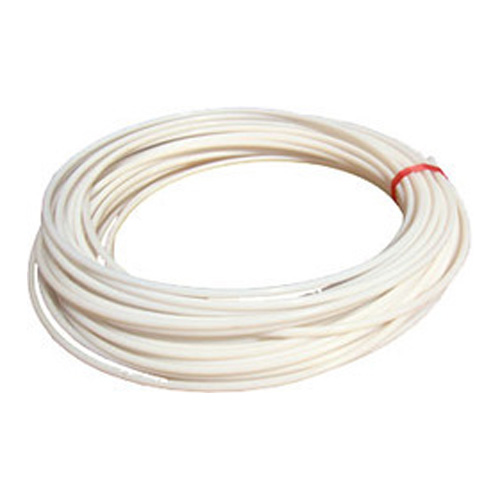

PTFE Insulated Sleevings

PTFE Insulated Sleevings is for high temperature or high frequencies or both. PTFE Sleeve and Teflon sleeve possesses excellent electrical properties, which remain practically constant over a wide range of frequencies and humidities and has a very low loss factor.

We manufacture the PTFE Sleeve, Teflon Sleeve, PTFE Insulated Sleeve and Teflon Insulated Sleeve confirming to JSS-54802 specification of the Department of Defence Production, Ministry of Defence, New Delhi. The PTFE Sleevings can be manufactured as per any other specific requirement on request. All the sizes may be manufactured in Black, Brown, Red, Orange, Yellow, Green, Blue, Grey and White Colours on specific instructions in the P.O

Advantages

Meets JSS-54802 Specification
Resistance to fire
Resistance to Chemicals
Corona resistance
Non-flammable

Specifications

The PTFE Sleevings can be manufactured as per any other specific requirement on request. All the sizes may be manufactured in Black, Brown, Red, Orange, Yellow, Green, Blue, Grey and White Colours on specific instructions in the P.O

PTFE Insulated Sleevings as per JSS -54802

Ask for Price

S. No.	BORE (mm.)		WALL THICKNESS (mm.)		COLOUR
	NOMINAL	TOLERANCE	NOMINAL	TOLERANCE	COLOUR
	(1)	(2)	(3)	(4)	(5)
1.	0.50	+/- 0.10	0.25	+/- 0.05	White
2.	1.00	+/- 0.10	0.25	+/- 0.05	White
3.	1.50	+/- 0.15	0.25	+/- 0.08	BLack
4.	2.00	+/- 0.15	0.30	+/- 0.08	Orange
5.	2.50	+/- 0.15	0.30	+/- 0.08	Red
6.	3.00	+/- 0.15	0.35	+/- 0.08	Grey
7.	4.00	+/- 0.20	0.40	+/- 0.08	Yellow
8.	5.00	+/- 0.20	0.50	+/- 0.10	Black
9.	6.00	+/- 0.30	0.50	+/- 0.10	Orange
10.	7.00	+/- 0.30	0.50	+/- 0.10	Red
11.	8.00	+/- 0.30	0.50	+/- 0.10	Grey
12.	9.00	+/- 0.30	0.50	+/- 0.10	Yellow
* The above isjust for information and not a specification.
