Coaxial Cables / Triaxial Cables

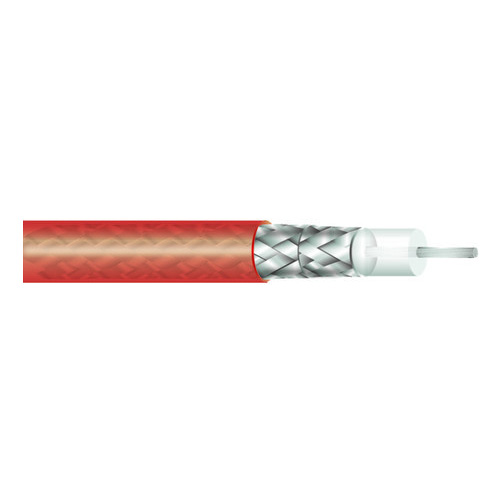

Coaxial Cables & Triaxial Cables are constructed with an inner conductor surrounded by a dielectric, which in turn, is enclosed by an outer conductor that also acts as a shield. A protective jacket covers the outer conductor and also acts as insulation.

We offer the high-quality miniaturized proprietary and custom designed insulated coaxial cables and PTFE insulated coaxial cables. Among the important characteristics designed into miniature cables are low noise, low capacitance, and high operating temperatures.We offer R.F. cable such as RG. 196 A/U. RG 188 A/U, RG 187 A/U, RG 195 A/U.

Advantages
Specifications
PTFE Insulated Coaxial Cables and PTFE Triaxial Cables as per MIL - C 17 & JSS51100

PTFE Insulated Coaxial Cables

Ask for Price

Conductor
Bare Copper or Silver Plated Copper or Nickel Plated Copper Wire or As per Customer.
Primary Insulation
PTFE Wrap Insulation.
Brading Material
Bare Copper or Silver Plated Copper or Nickel Plated Copper Wire or As per Customer.
Secondary Insulation
PTEE Wrap Insulation.
Properties
Resistance to Fire, Chemical., Acids, Sunlight, Moisture and Corona.
Voltage Grade
250V / 600V / 1000V or as customer requirements.
Temperature
- 65° C to +260°C
Colour
All Electronic Colours.
Size
As per Customer
