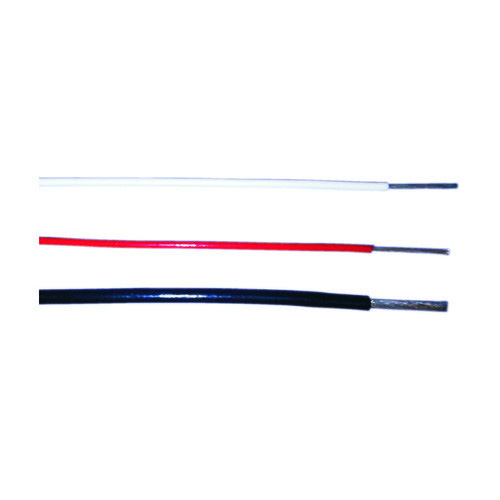

Hook Up Wire

We manufactures a variety of standard and custom PTFE insulated wire for any hook-up application. Standard products meet popular military standards. As the industry's only vertically integrated supplier, Tonk's proprietary PTFE tape wrap material is free of pinholes and offers the highest uniformity, making us the leader in high performance hook-up wire. Standard products meet the following Mil Standards: - MIL-W-16878 (Type ET, 250 volts)

  • MIL-W-16878 (Type E, 600 volts)
  • MIL-W-16878 (Type EE, 1000 volts)
Advantages
  • Meets MIL-W-16878 Specification
  • Meets JSS-51034 Specification
  • Resistance to fire
  • Resistance to Chemicals
  • Corona resistance
  • Non-flammable
Tonk PTFE Hook-up Wire maintains high uniformity and concentricity. This wire is especially suited to mil/auto harness applications due to its small size, wide temperature range, non-flammable and resistance to acid and chemicals.

We manufactures a range of standard PTFE hook-up wire, however, our expertise goes beyond standard mil-spec wire. If your needs include special performance or size, we would be happy to provide a quotation.


Hook-Up-Wire
Conductor
SPC/NPC/BC or as required.
Insulation
PTFE wrap insulation or with polymide / PTFE combination.
Properties
Resistance to fire, chemicals, acids, sunlight, moisture and corona.
Voltage grade
250V/ 600V/ 1000V or as per customer requirements.
Temperature
-65° C to + 260° C
Colour
All electronic colours.
Size
As per customer.
