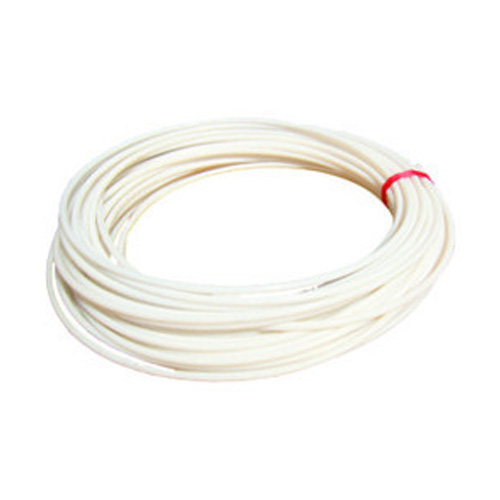

PTFE Extruded Tube

PTFE Extruded Tubes application is for high temperature or high frequencies or both. PTFE Extruded Tubes possesses excellent electrical properties, which remain practically constant over a wide range of frequencies, temperature (-600 to +260° C) and humilities and has a very low loss factor.

We manufacture the PTFE Extruded Tubes confirming to JSS-54802 specification of the Department of Defense Production, Ministry of Defence, New Delhi.

Specifications

PTFE Extruded Tube
S. No. BORE (mm.) WALL THICKNESS (mm.) COLOUR
NOMINAL TOLERANCE NOMINAL TOLERANCE
(1) (2) (3) (4) (5)
1. 0.50 +/- 0.10 0.25 +/- 0.05 White
2. 1.00 +/- 0.10 0.25 +/- 0.05 White
3. 1.50 +/- 0.15 0.25 +/- 0.08 Black
4. 2.00 +/- 0.15 0.30 +/- 0.08 Orange
5. 2.50 +/- 0.15 0.30 +/- 0.08 Red
6. 3.00 +/- 0.15 0.35 +/- 0.08 Grey
7. 4.00 +/- 0.20 0.40 +/- 0.08 Yellow
8. 5.00 +/- 0.20 0.50 +/- 0.10 Black
9. 6.00 +/- 0.30 0.50 +/- 0.10 Orange
